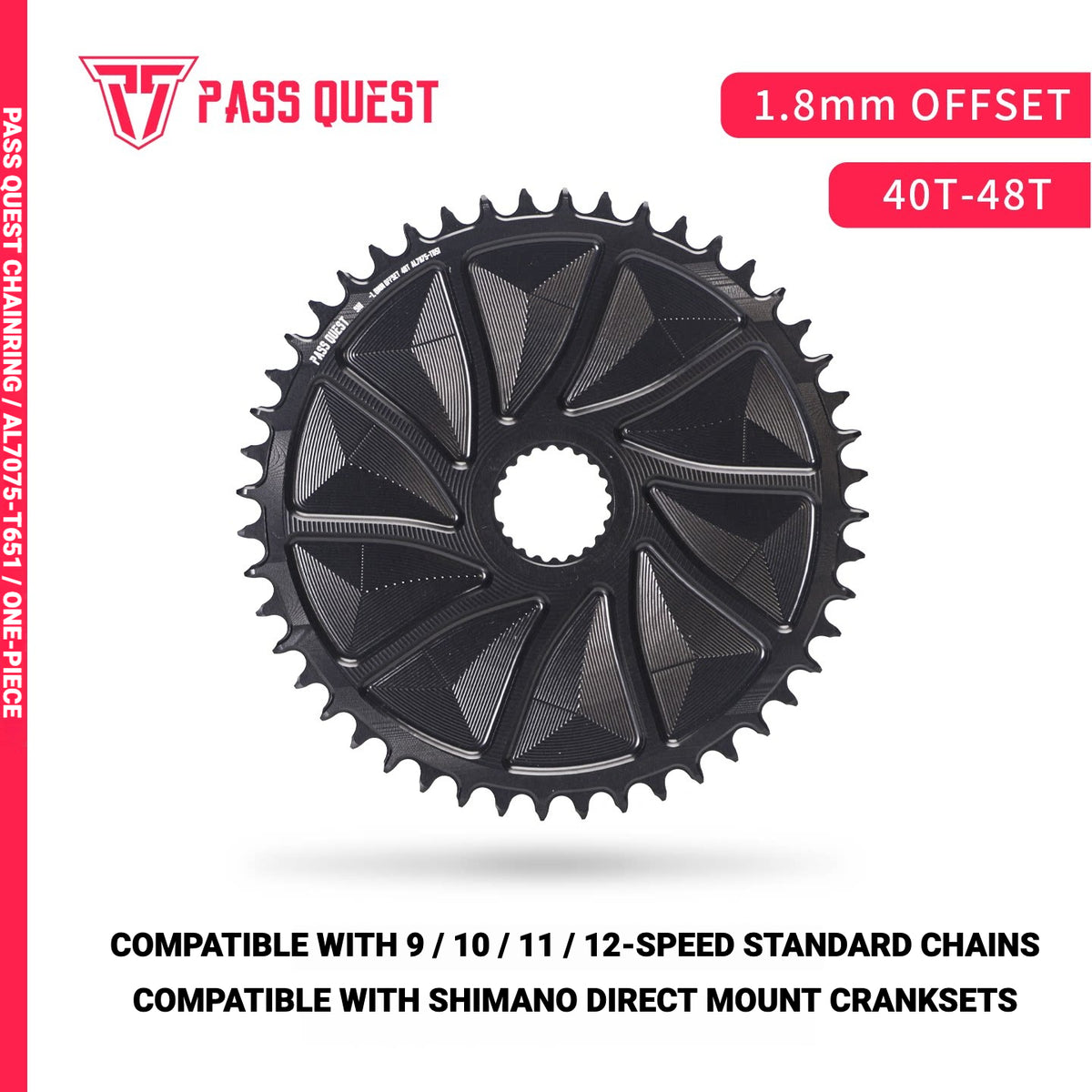

PASS QUEST Shimano Direct Mount Narrow Wide Chainring

Upgrade your Shimano direct-mount drivetrain with a larger chainring while fine-tuning chainring-to-frame clearance.

The PASS QUEST 1.8mm Offset Narrow Wide Chainring is CNC-machined from a solid plate of high-strength 7075-T651 aluminum alloy. Available in both 1.8mm inward and 1.8mm outward offset versions, it allows riders to optimize chainring position according to frame clearance and drivetrain setup.

Designed for Shimano direct-mount cranksets, this chainring is ideal for MTB, gravel, and custom builds requiring larger 40T–48T gearing.

KEY FEATURES

1.8mm Inward / Outward Offset Options

Two offset configurations are available to fine-tune chainring position and frame clearance.

1.8mm Inward Offset:
Moves the chainring approximately 1.8mm closer to the frame.

1.8mm Outward Offset:
Moves the chainring approximately 1.8mm farther away from the frame.

The offset options are especially useful when installing larger chainrings on frames with limited chainring clearance.

Shimano Direct Mount Compatibility

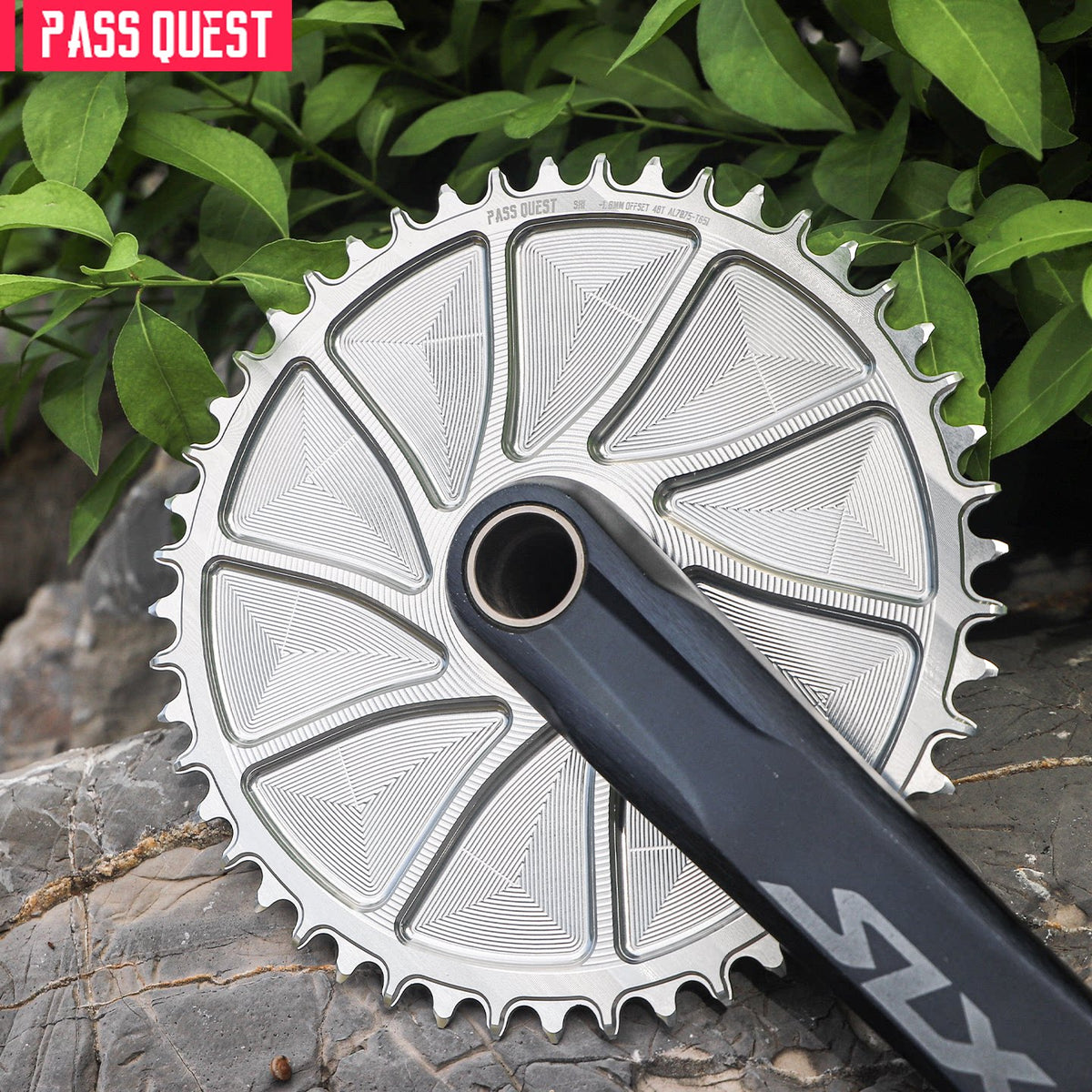

Designed for Shimano direct-mount cranksets, including selected XTR, XT, SLX, and Deore series cranksets.

Narrow Wide Tooth Profile

The alternating narrow/wide tooth profile provides improved chain engagement and retention, helping reduce the chance of chain drop during rough riding.

7075-T651 Aluminum Alloy

CNC-machined from high-strength 7075-T651 aluminum alloy for an excellent balance of stiffness, durability, wear resistance, and low weight.

Full CNC Machining

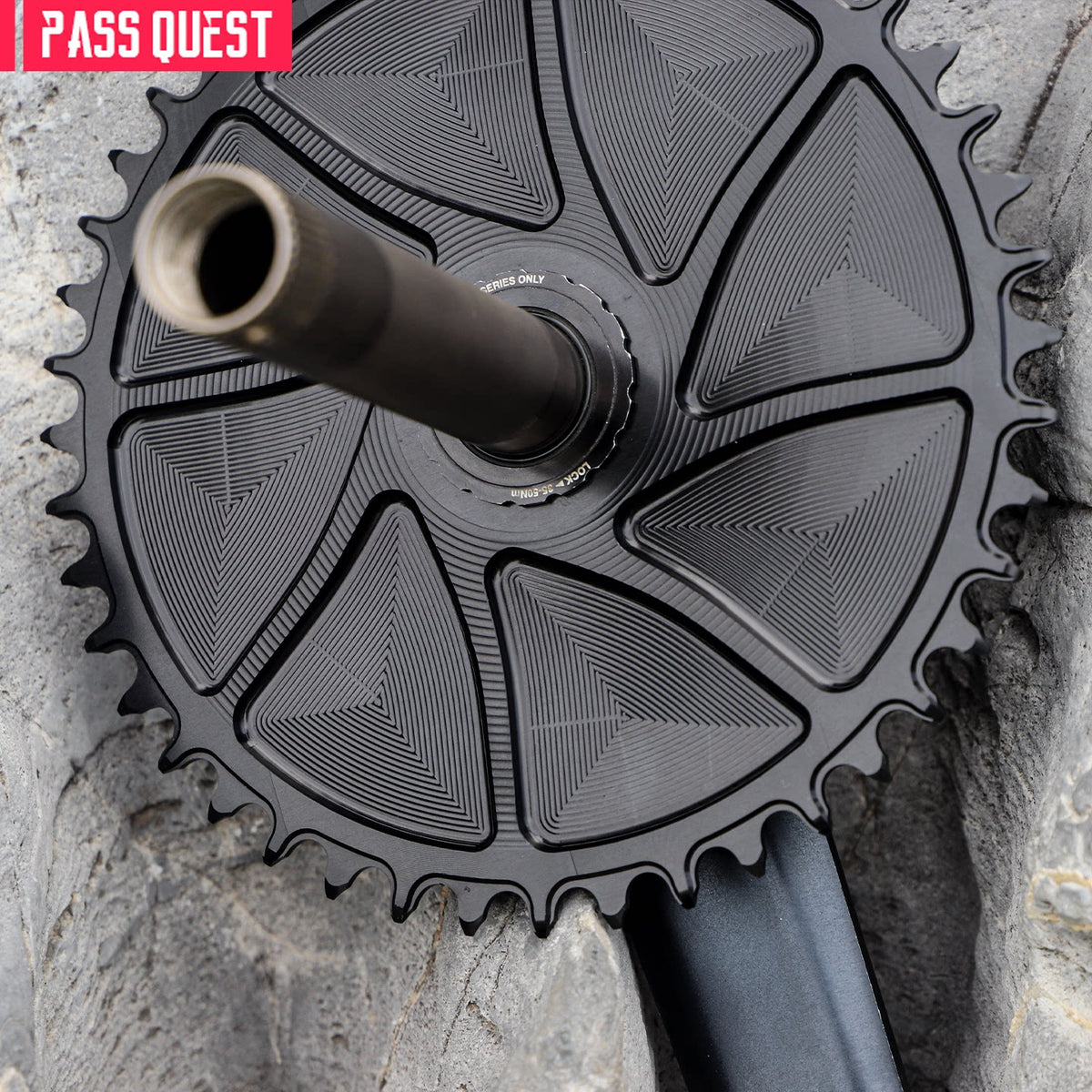

Each chainring is CNC-machined from a solid aluminum plate. Material is strategically removed from the rear to reduce weight while maintaining structural strength and rigidity.

Extended Tooth Profile

The extended tooth profile increases chain engagement and helps keep the chain securely seated on the chainring, even during aggressive riding.

Anodized Surface Finish

Available in Black or Silver. The anodized surface treatment improves surface durability and provides a clean, premium finish.

COMPATIBILITY

XTR:
FC-M9100 / FC-M9120 / FC-M9125 / FC-M9130

XT:
FC-M8100 / FC-M8120 / FC-M8130

SLX:
FC-M7100 / FC-M7120 / FC-M7130

Deore:
FC-M6100 / FC-M6120 / FC-M6130

Other:
MT900 / MT610

Chain Compatibility:
9 / 10 / 11 / 12-Speed Standard Chains

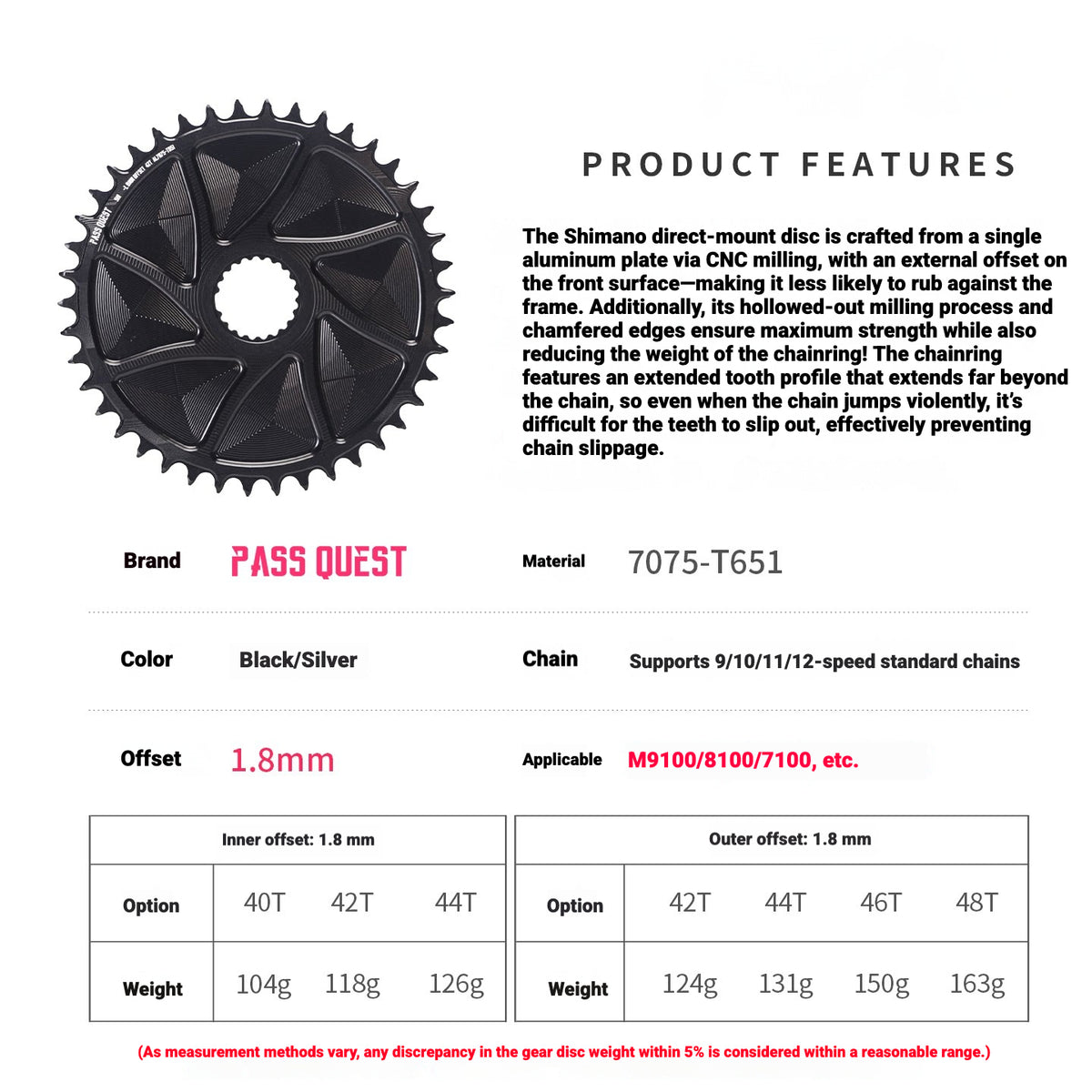

SIZE & WEIGHT

1.8mm Inward Offset

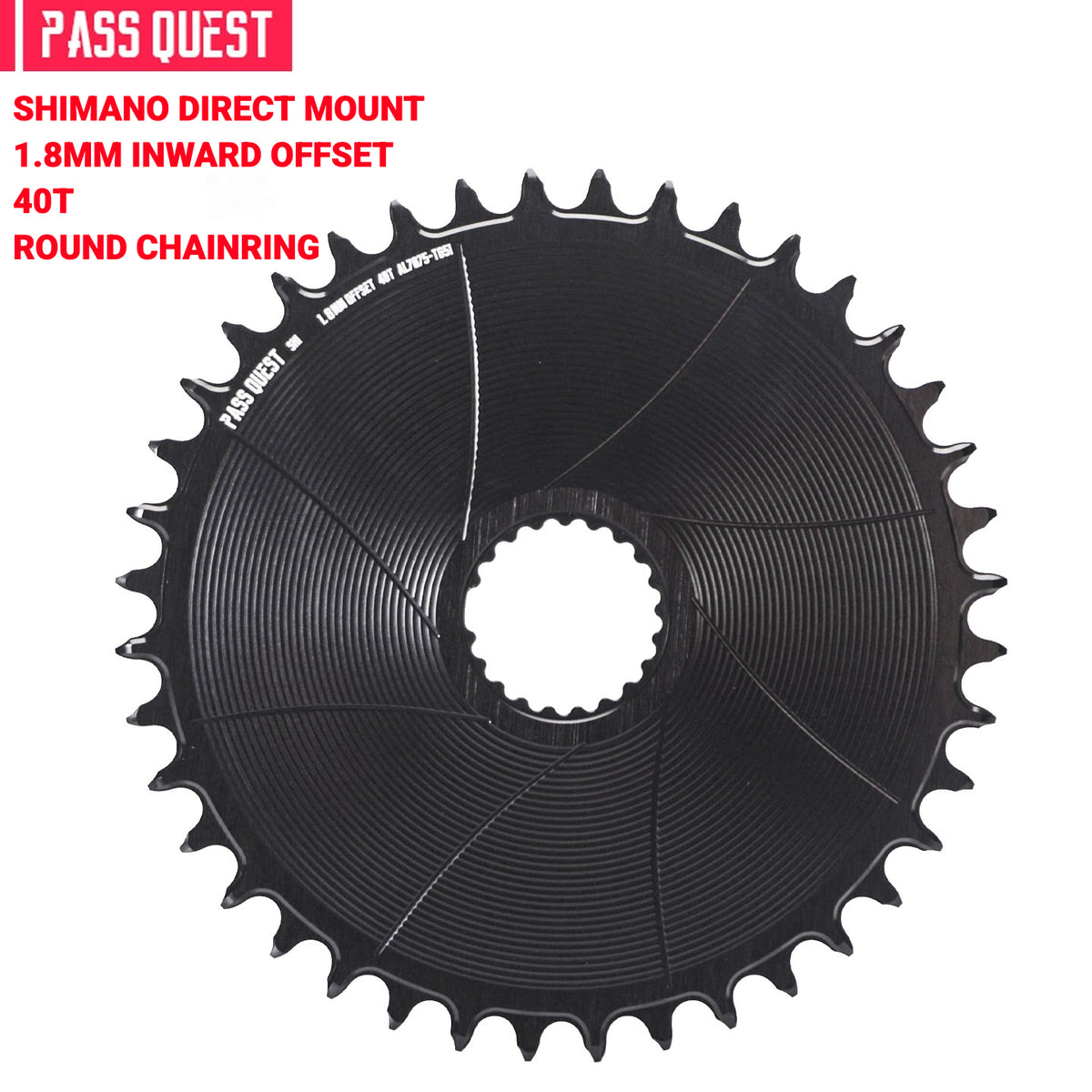

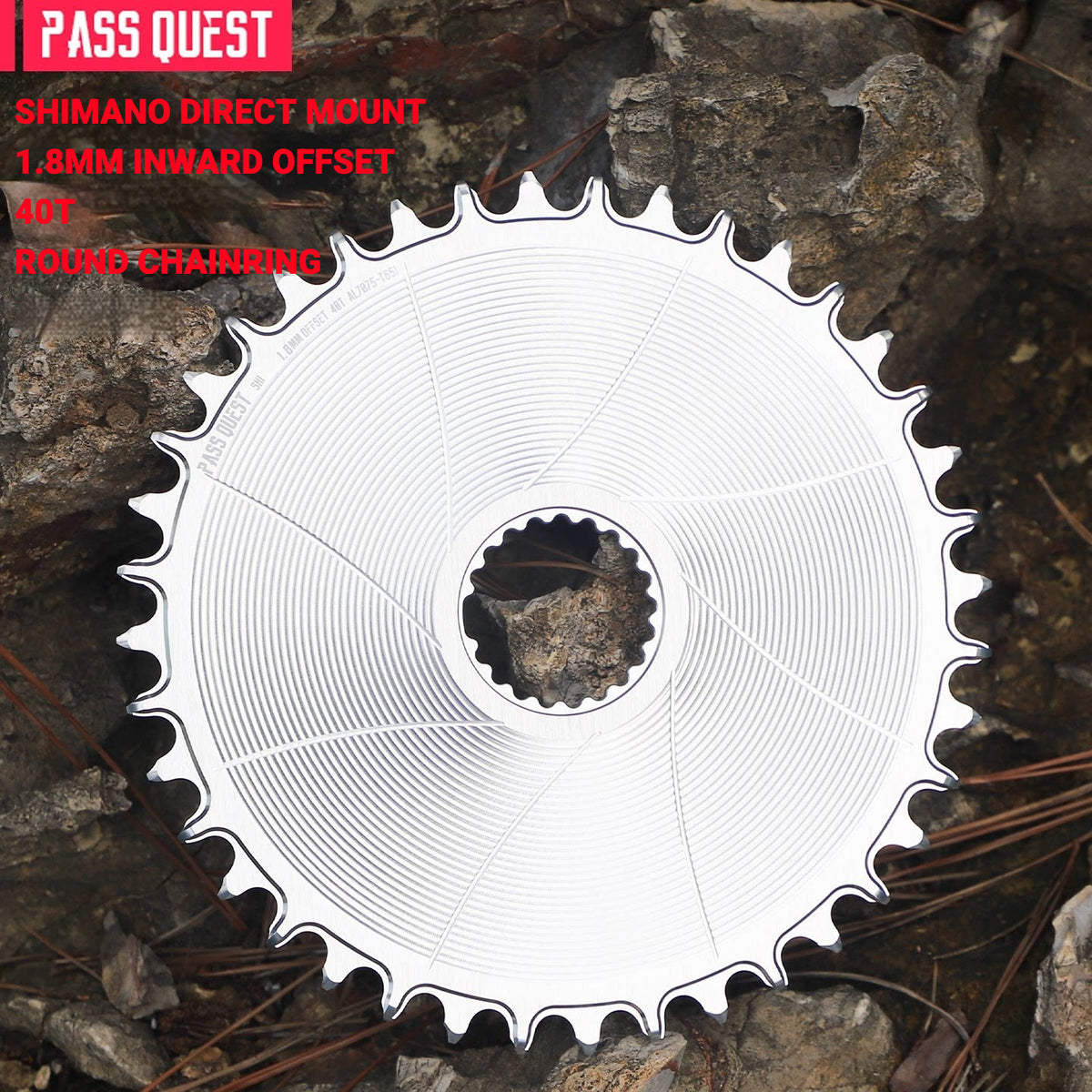

40T — Approx. 104g

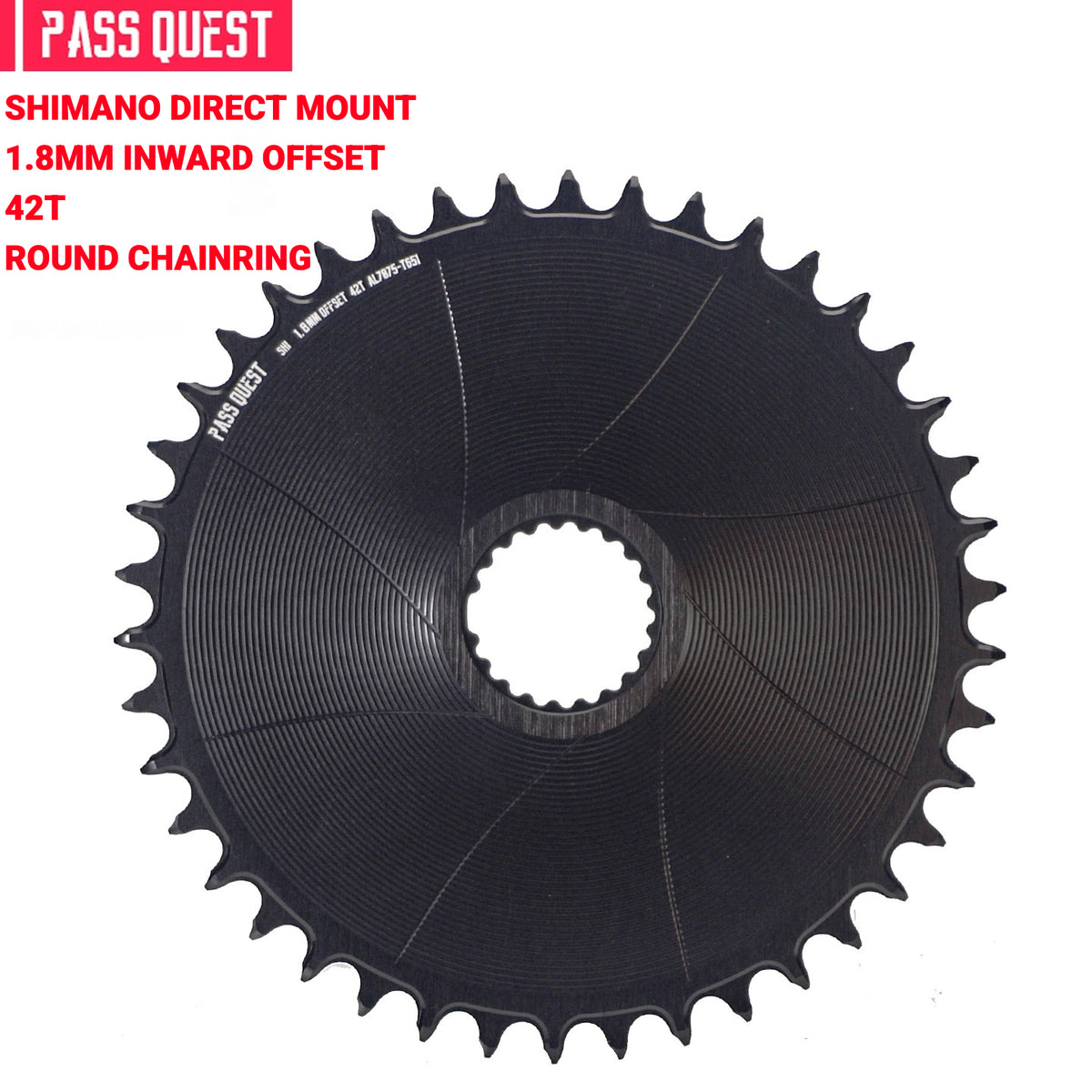

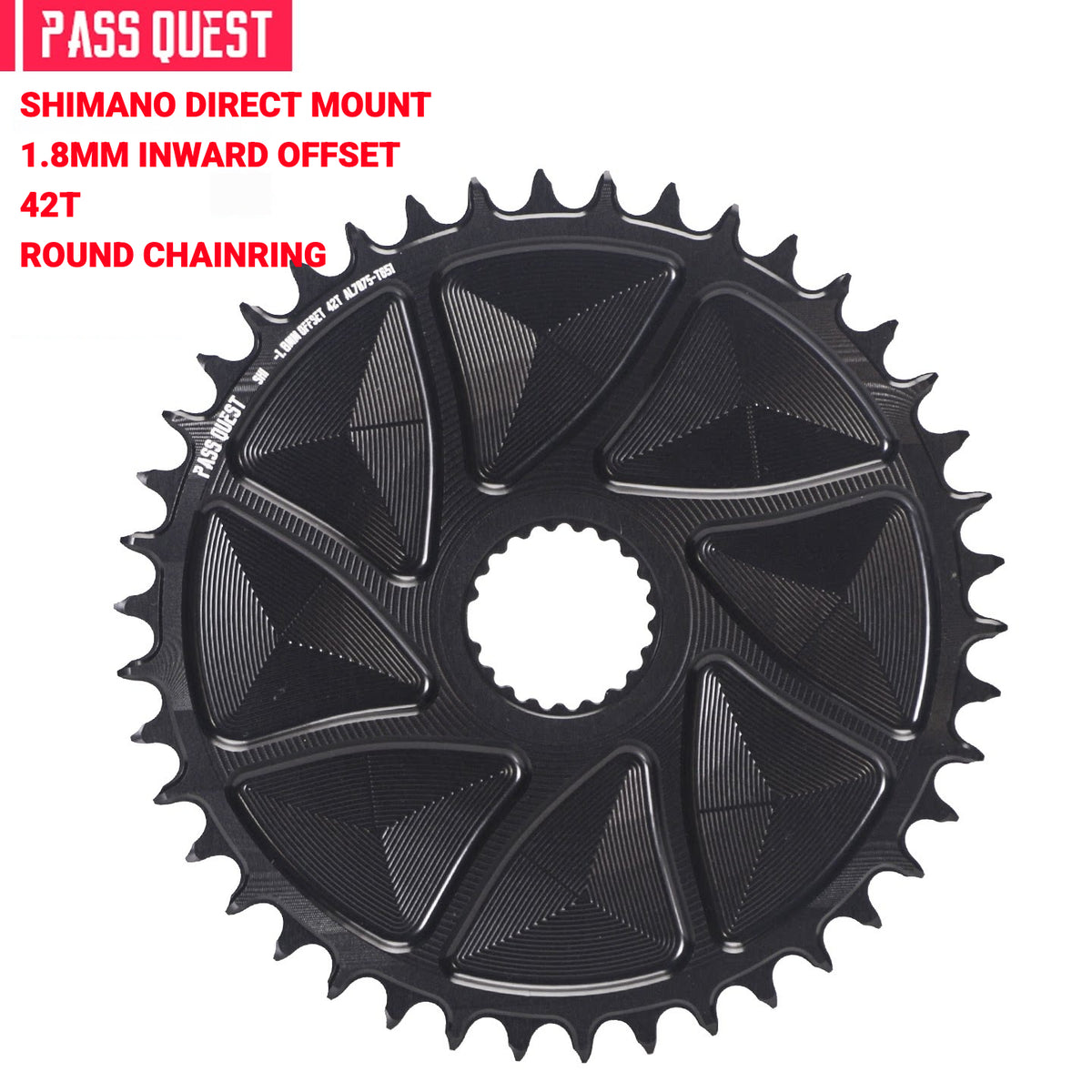

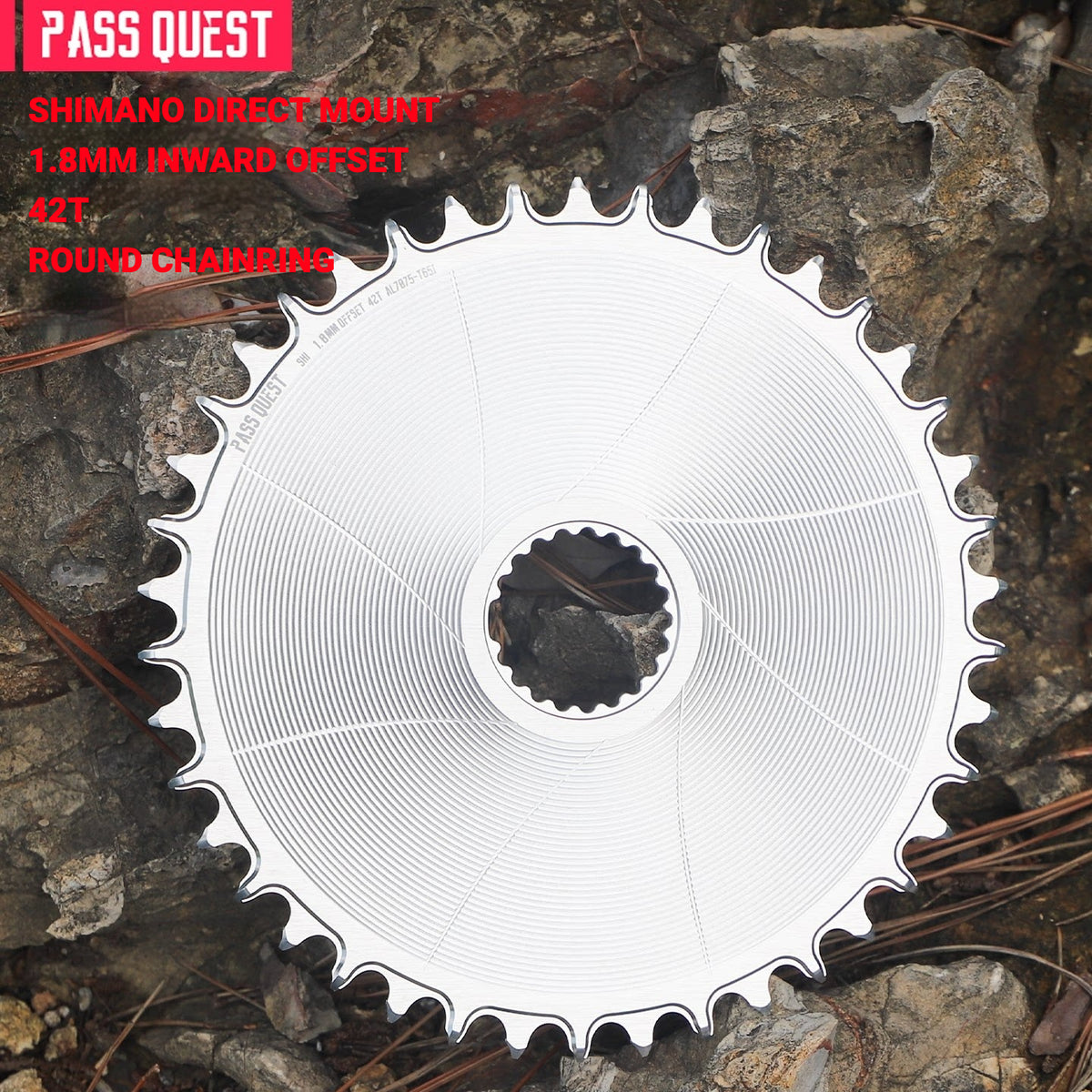

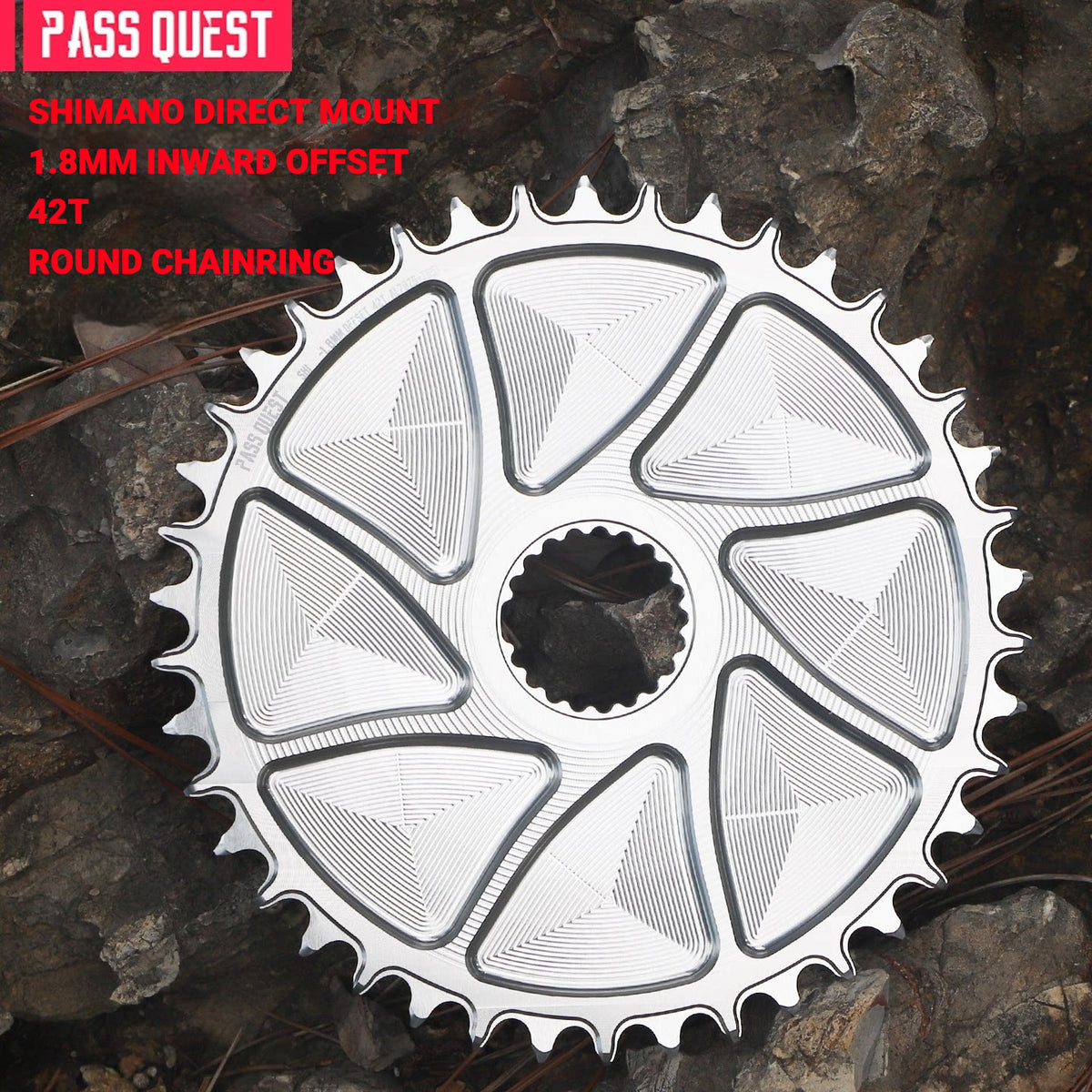

42T — Approx. 118g

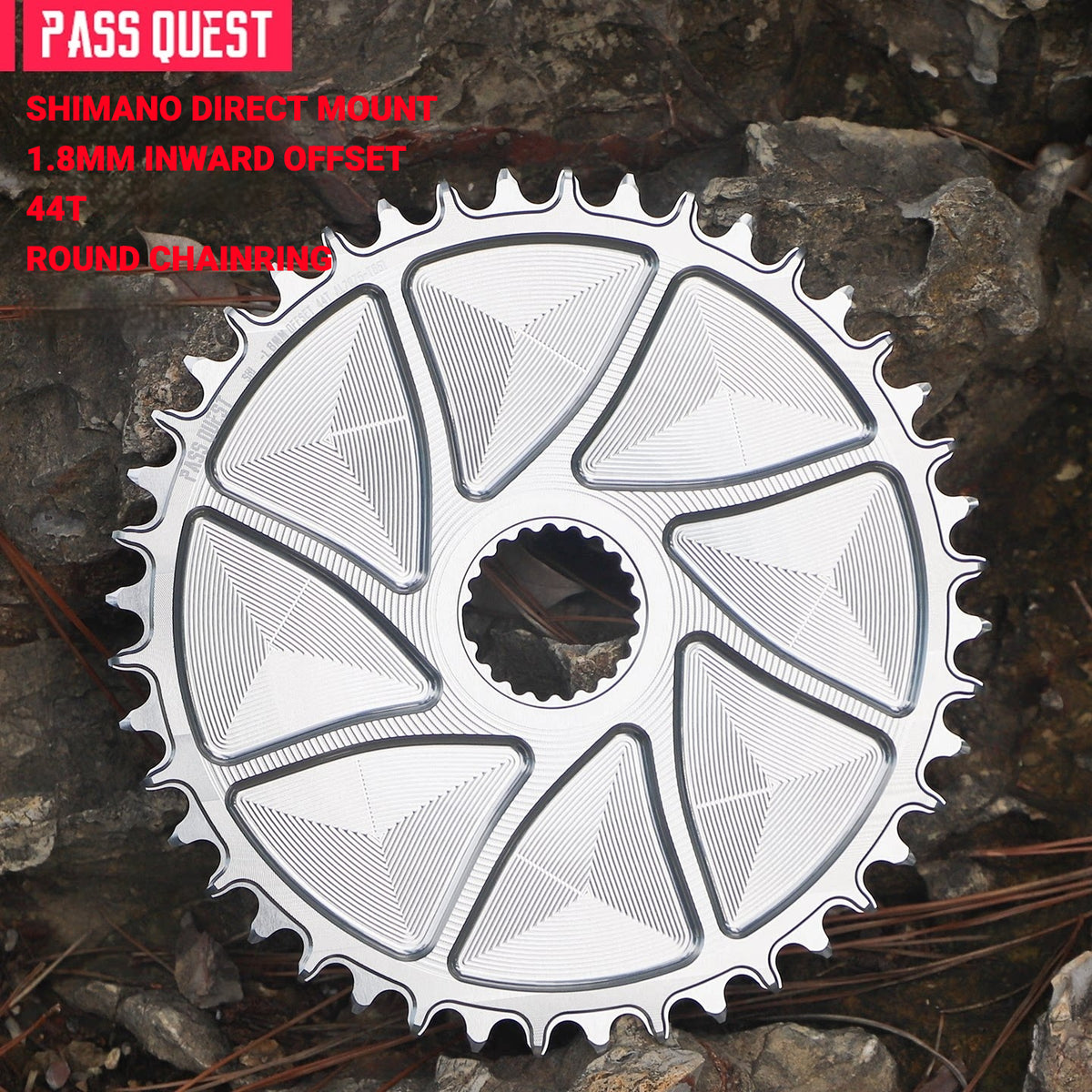

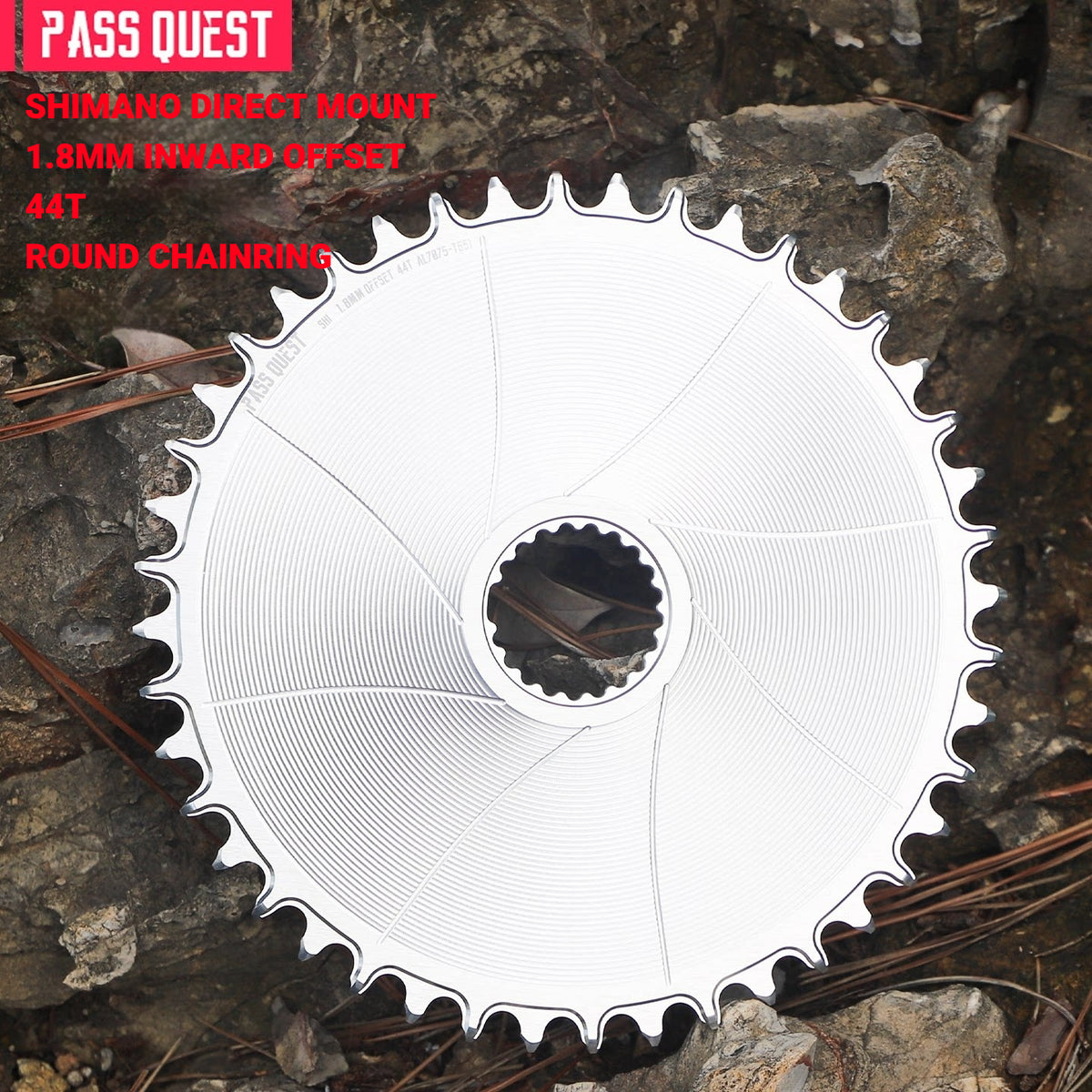

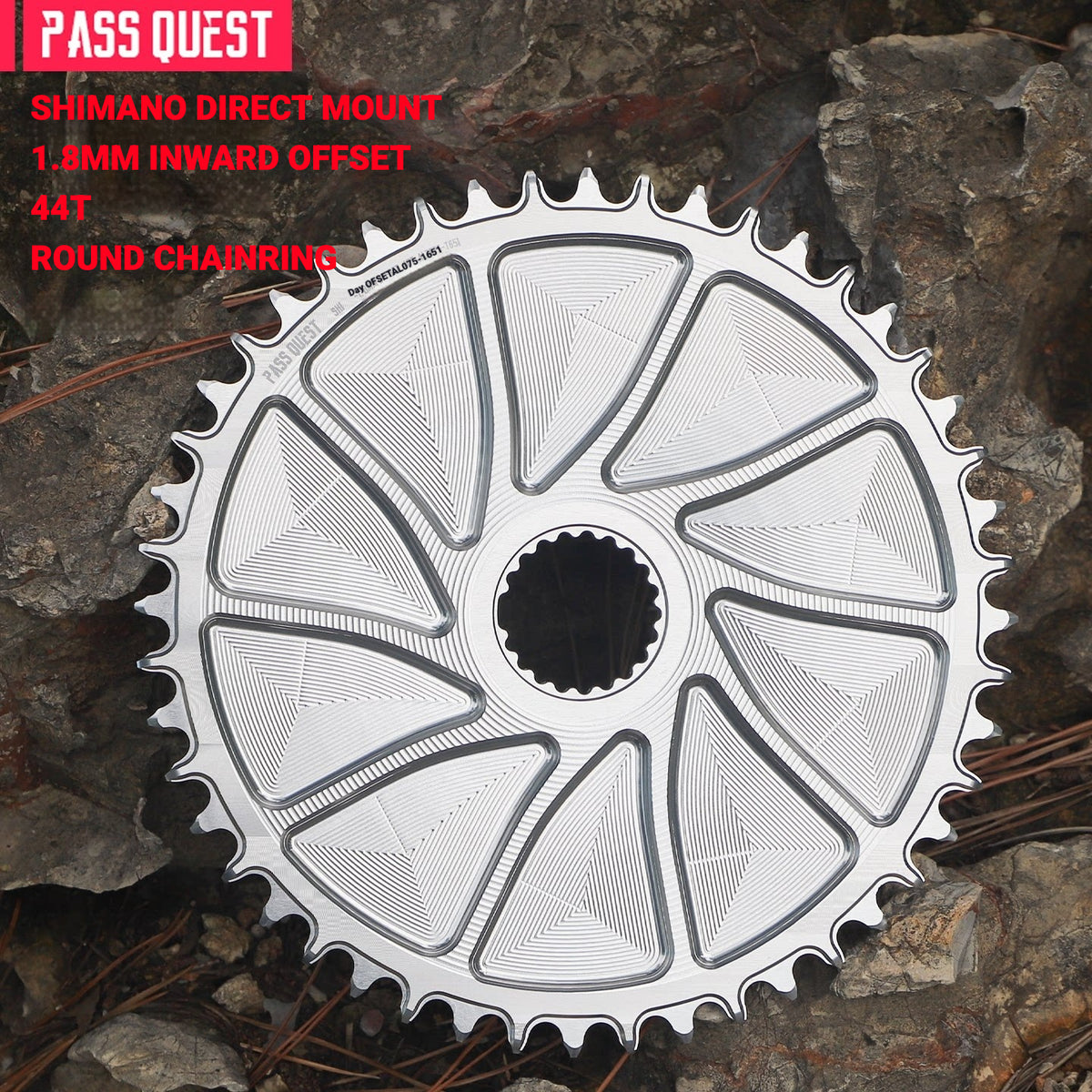

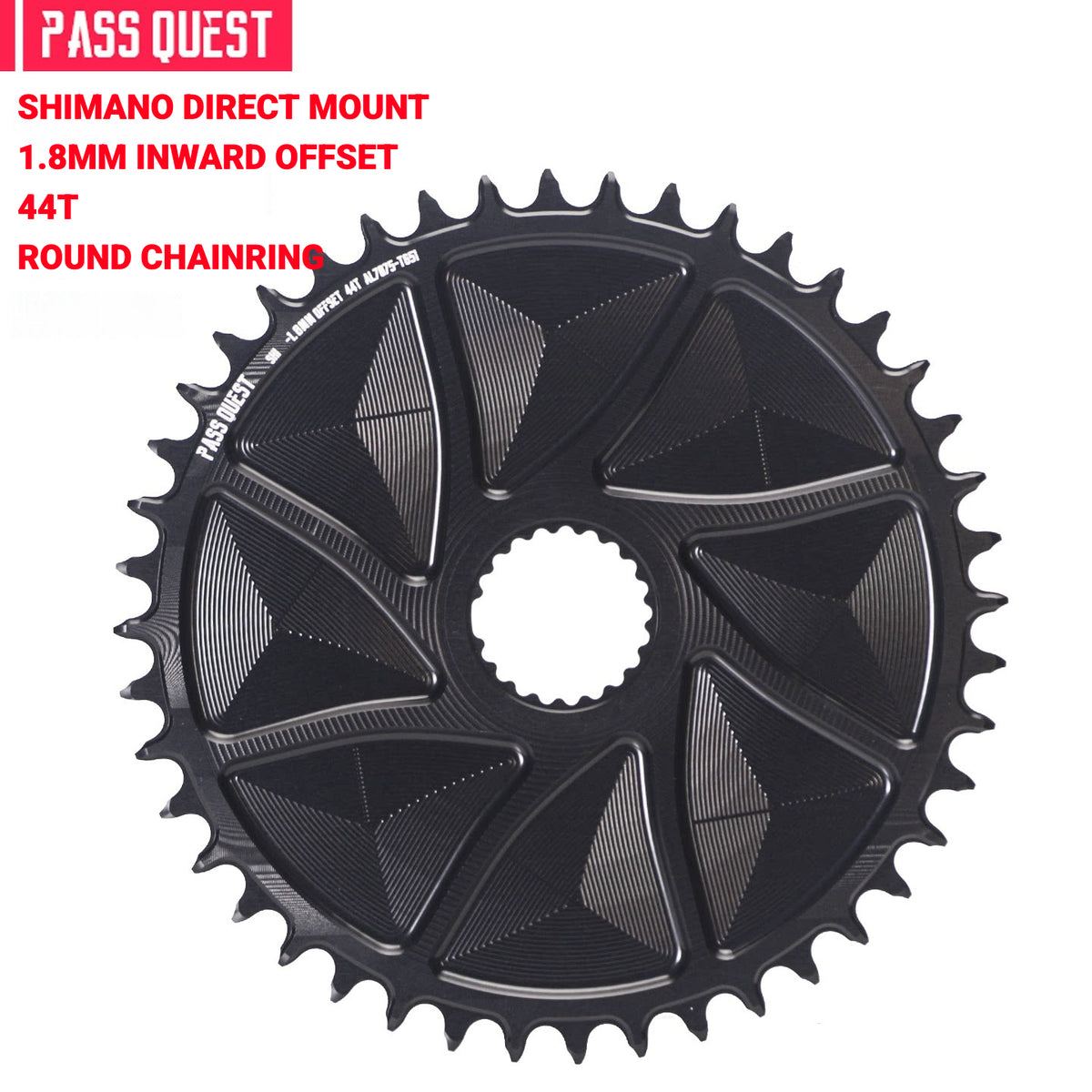

44T — Approx. 126g

1.8mm Outward Offset

42T — Approx. 124g
44T — Approx. 131g

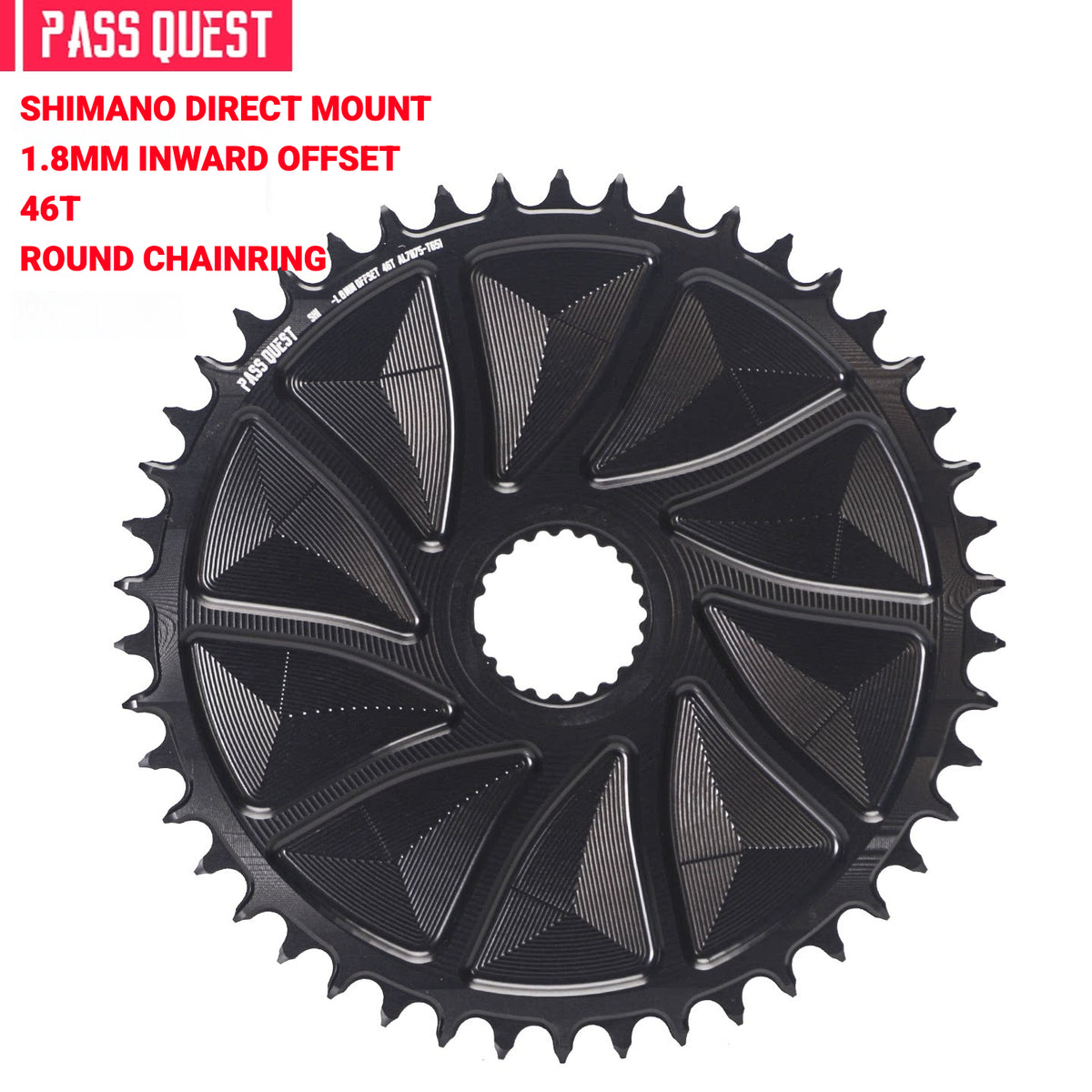

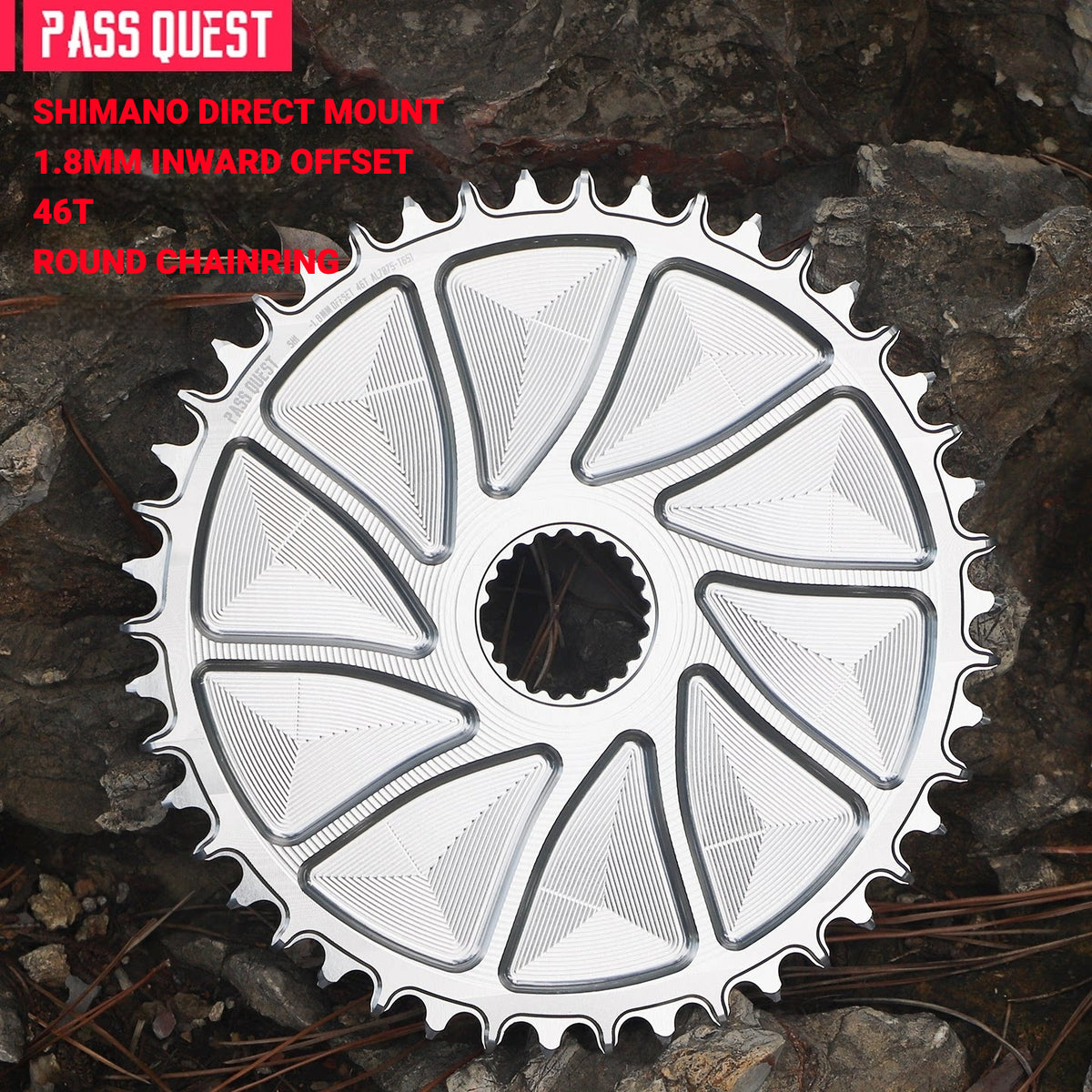

46T — Approx. 150g

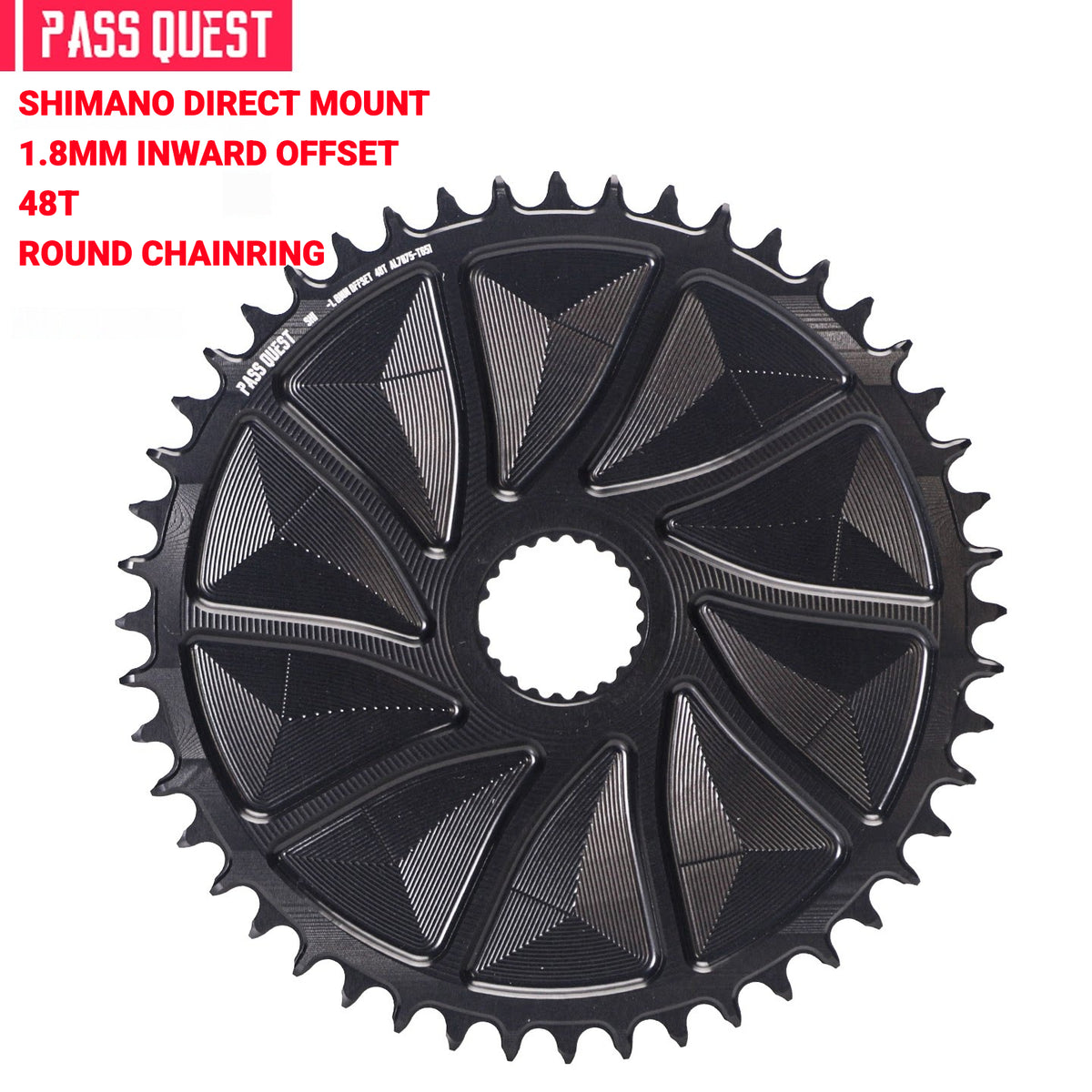

48T — Approx. 163g

Actual weight may vary by approximately ±5% due to production batches and measurement methods.

SPECIFICATIONS

Brand: PASS QUEST
Material: 7075-T651 Aluminum Alloy
Manufacturing: CNC Machined
Mount Type: Shimano Direct Mount
Tooth Profile: Narrow Wide
Chainring Shape: Round
Offset: 1.8mm Inward / 1.8mm Outward
Sizes: 40T / 42T / 44T / 46T / 48T
Colors: Black / Silver
Chain Compatibility: 9 / 10 / 11 / 12-Speed Standard Chains

HOW TO CHOOSE THE OFFSET

1.8mm INWARD OFFSET

Moves the chainring approximately 1.8mm closer to the bicycle frame.

Choose this version when your drivetrain setup requires the chainring to sit farther inward and sufficient clearance between the chainring and frame is available.

1.8mm OUTWARD OFFSET

Moves the chainring approximately 1.8mm farther away from the bicycle frame.

Choose this version when additional clearance between the chainring and frame is required. This can be especially useful when installing a larger chainring on a frame with limited chainring clearance.

WHY CHOOSE A 1.8MM OFFSET CHAINRING?

Frame geometry, chainline, and chainring clearance vary between different bicycle models.

The 1.8mm inward and outward offset options provide additional flexibility when building a drivetrain with a larger chainring.

For riders who want to run 40T, 42T, 44T, 46T, or 48T gearing, choosing the correct offset can help improve frame clearance while maintaining the desired drivetrain configuration.

IMPORTANT FITMENT INFORMATION

Please check your crankset interface, chainline, and frame clearance before ordering.

Larger chainrings may not fit every bicycle frame.

The 1.8mm inward and outward offset options change the position of the chainring relative to the frame. Please select the appropriate version according to your bicycle setup.

If you are unsure which offset or chainring size is suitable for your bike, please contact us with your bicycle model, crankset model, current chainring size, and photos of the chainring/frame clearance before ordering.
