NIUJU Computer Mount for FARSPORTS F1s / F1X Integrated Handlebar | Garmin 1050 Wahoo ACE
NIUJU Computer Mount for FARSPORTS F1s / F1X Integrated Handlebar

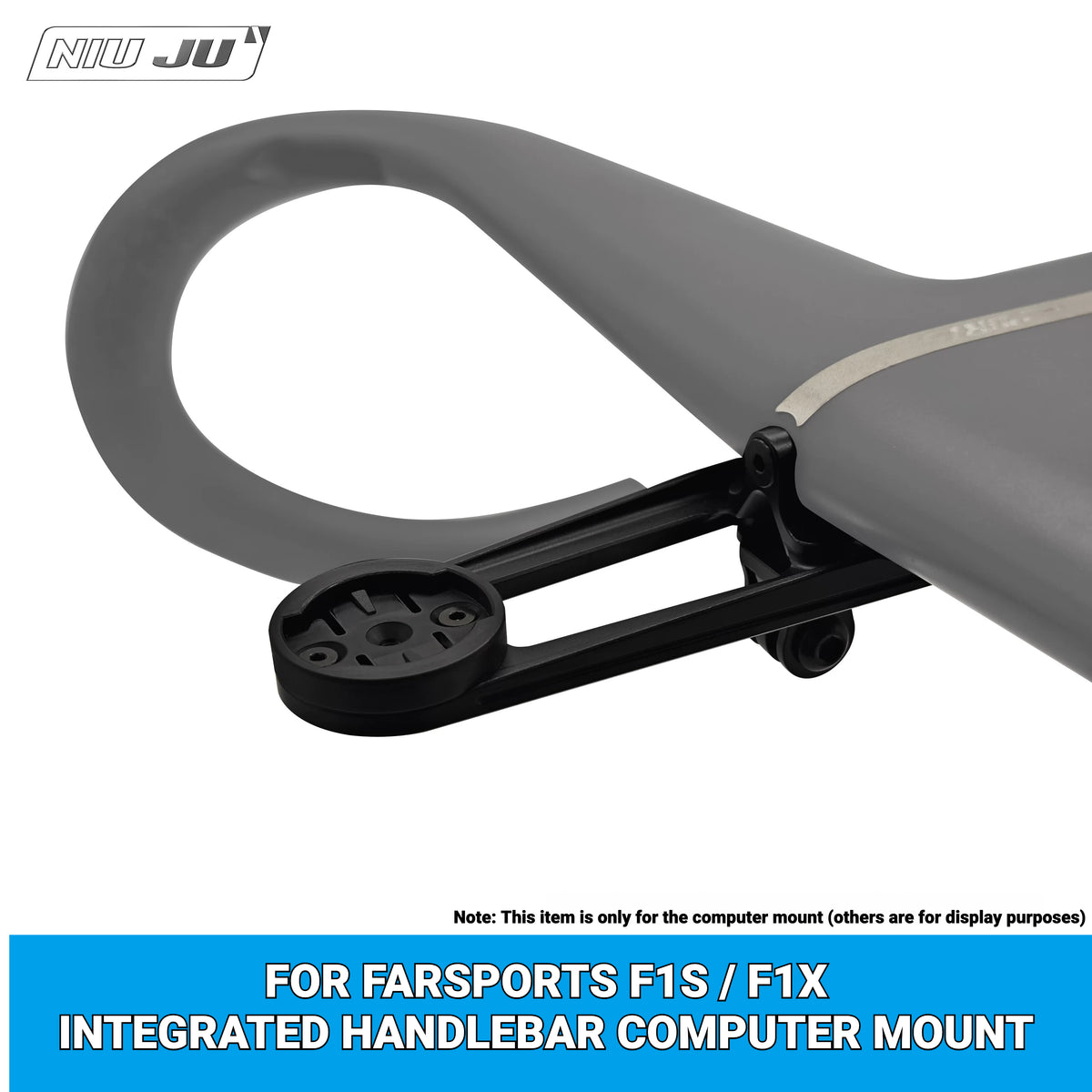

A dedicated out-front bike computer mount designed for compatible FARSPORTS F1s and F1X integrated handlebars.
Designed with larger cycling computers in mind, this extended mount provides the clearance required for models such as the Garmin Edge 1050 and Wahoo ELEMNT ACE while maintaining a clean, centered position in front of the cockpit.
FARSPORTS F1s / F1X Compatibility
- Compatible with FARSPORTS F1s integrated handlebars
- Compatible with applicable FARSPORTS F1X integrated handlebars using the F1s-style computer mount interface
- Direct-mount design for a clean integrated cockpit setup
- Designed specifically for the handlebar mounting interface — no external handlebar clamp required
Important: FARSPORTS states that F1X handlebars produced from October 10, 2024 use the same computer mount design as the F1s. Earlier F1X versions may use a different mounting interface. Please check your handlebar before ordering.
Compatible with Large Bike Computers
The extended design provides additional clearance for modern large-screen cycling computers.
- Garmin Edge 1050
- Garmin Edge 1040
- Wahoo ELEMNT ACE
- Other compatible Garmin and Wahoo cycling computers using the selected interface
Please select the correct computer interface when ordering.

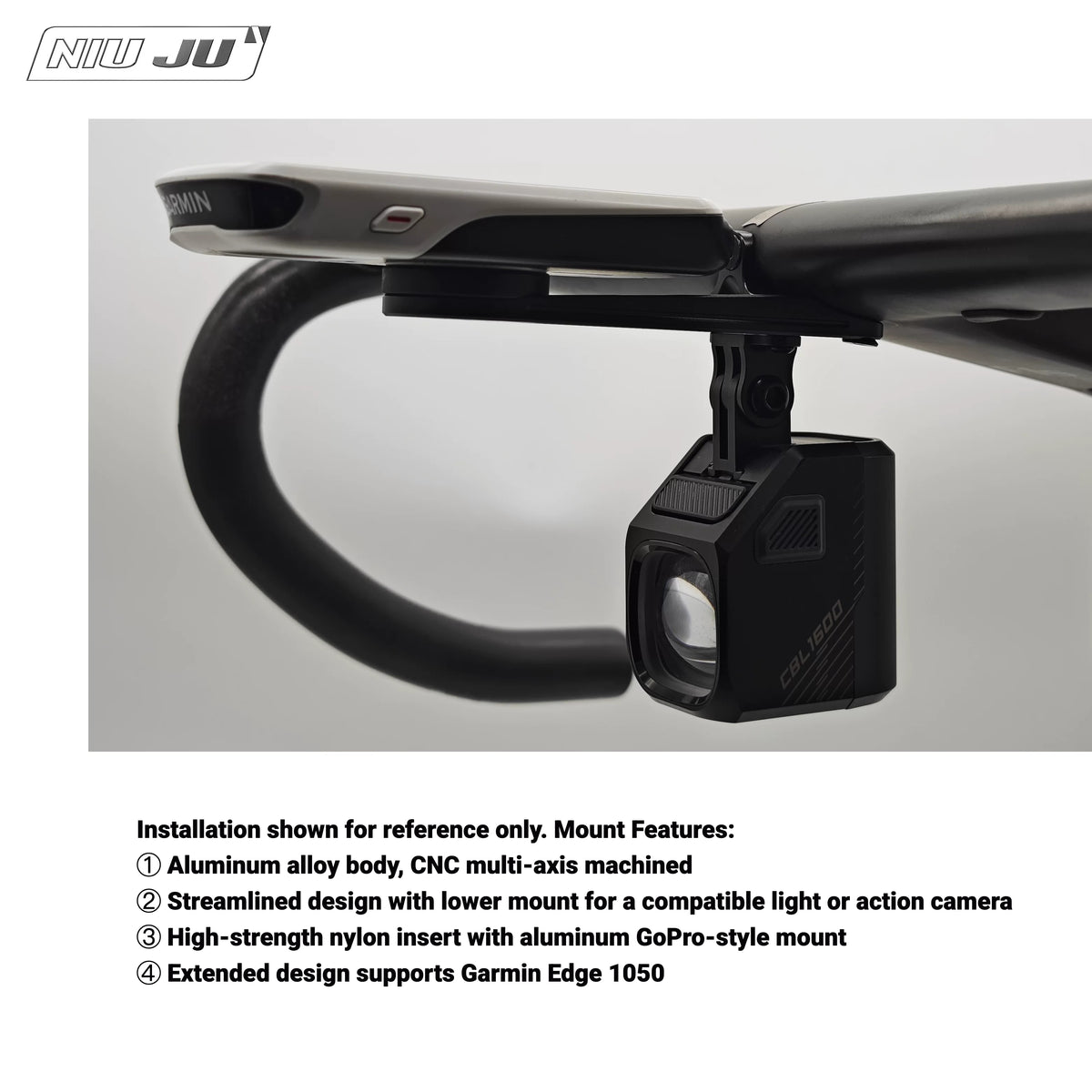

Clean Out-Front Position
The dedicated mounting position keeps the cycling computer centered in front of the integrated handlebar, creating a clean cockpit while maintaining convenient screen visibility.
Compared with conventional handlebar clamp mounts, the direct-mount design integrates more naturally with the FARSPORTS F1s / F1X cockpit.

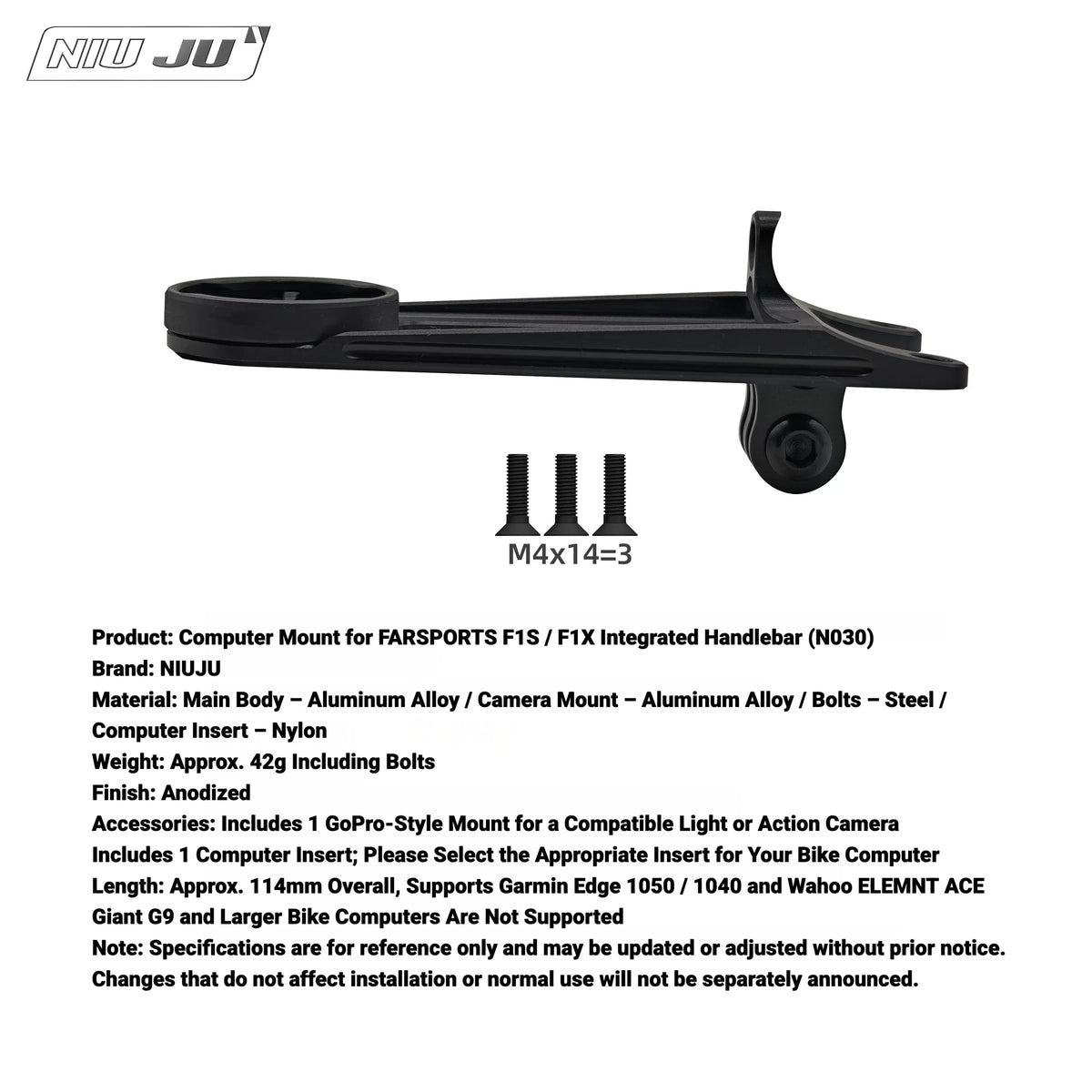

Specifications
- Brand: NIUJU
- Product Type: Bike Computer Mount
- Handlebar Compatibility: FARSPORTS F1s / Compatible F1X
- Computer Compatibility: Garmin / Wahoo
- Large Computer Support: Garmin Edge 1050 / Wahoo ELEMNT ACE
- Mounting Position: Out-Front
- Application: Road Bike / Integrated Cockpit

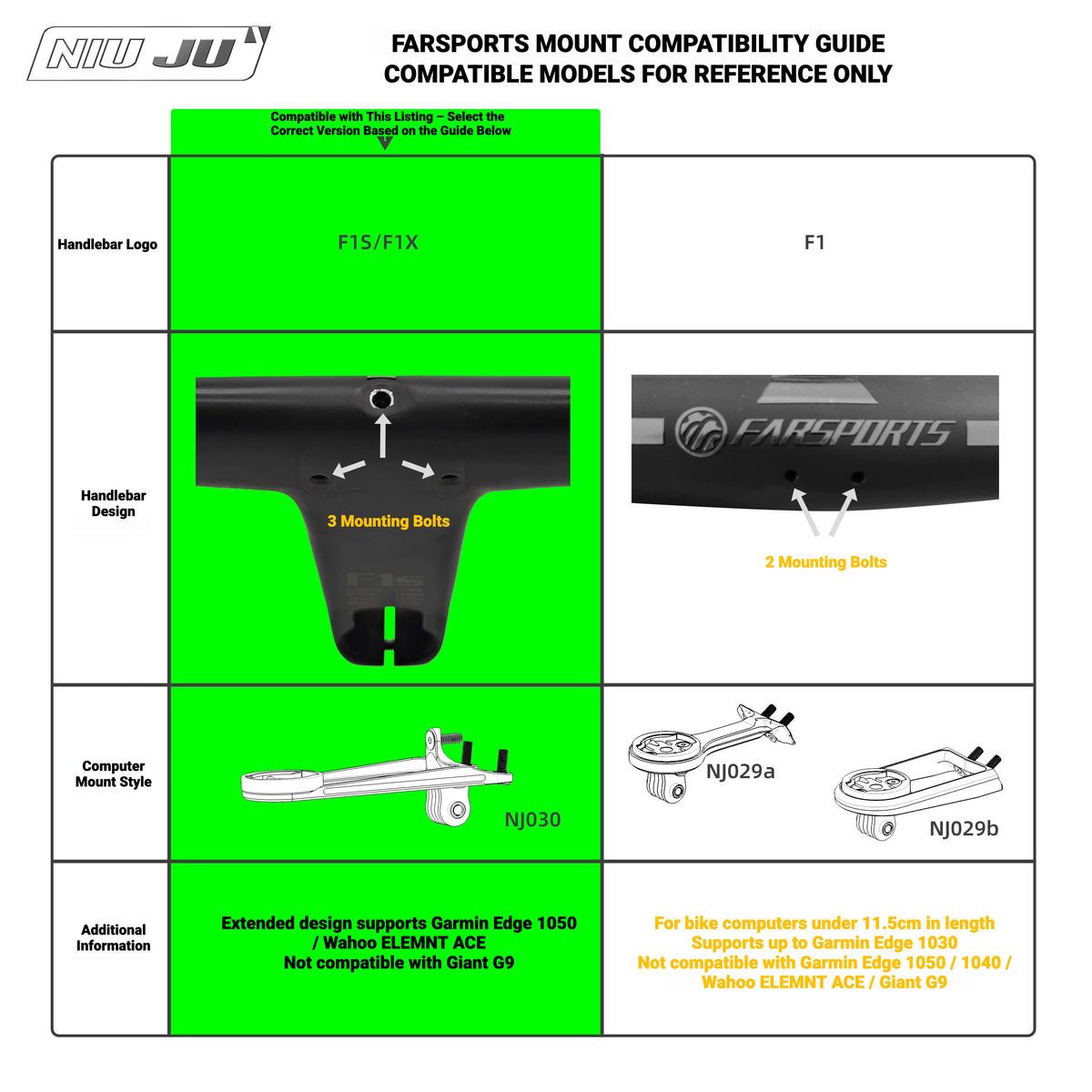

Compatibility Notice
Please check the mounting interface underneath your FARSPORTS handlebar before ordering.
FARSPORTS has used different computer mount designs across different F1-series generations. This product is intended for the compatible F1s-style mounting interface.
If you are unsure about compatibility, please send us a clear photo of the underside of your handlebar and its computer-mounting points before ordering. We can help confirm the correct version.
Installation Notes
- Confirm handlebar compatibility before installation.
- Select the correct computer interface for your device.
- Ensure all mounting bolts are properly engaged before tightening.
- Follow the appropriate torque specification for the mounting hardware.
- Do not overtighten the bolts.
- Periodically check the mount and bolts for secure installation.
Package Includes
1 × NIUJU Computer Mount for compatible FARSPORTS F1s / F1X integrated handlebar
Bike computer, integrated handlebar, lights, cameras and other accessories shown in product photos are not included unless specifically stated.
Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.
Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.
Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.
No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.
All products are photographed to accurately represent the colors you will see upon receipt.
Due to differences in lighting, angles, or screen settings, slight color variations may occur.
The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
| S-PARTS Common Torque Reference Table for Bicycle Series | ||||||
| Ingredient | Component Name | Screw Name | Reference Torque | Anti-seize Usage | Medium-strength Threadlocker Usage | Special Requirements Remarks |
| Frame System | Handlebar Assembly | M4 Stem Fixing Screws | 4NM | Recommended | Consider with Caution | For special structure handlebar assemblies, please refer to the original manufacturer's recommended torque specifications. |
| M5 Stem Fixing Screws | 5NM | Recommended | Consider with Caution | |||
| M6 Stem Fixing Screws | 6-8NM | Recommended | Consider with Caution | |||
| M7 Handlebar Fixing Screws (Brompton) | 8-10NM | Recommended | Consider with Caution | |||
| M8 Stem Fixing Screws (BMX) | 8-10NM | Recommended | Consider with Caution | |||
| Headset | Headset Preload Screws (including M5/M6) | 4-6NM | Recommended | Not Recommended | ||
| Frame/Fork | M3 Fork Hose Clamp Screws | 1-2NM | Recommended | Not Recommended | For special structure seatpost clamps, please refer to the original manufacturer's recommended torque specifications. | |
| Water Bottle Cage Screws | 4NMM | Recommended | Not Recommended | |||
| M4 Derailleur Hanger Fixing Screws | 3-4NM | Recommended | Consider with Caution | |||
| M5 Derailleur Hanger Fixing Screws | 4-5NM | Recommended | Consider with Caution | |||
| M5 Front and Rear Rack Fixing Screws | 6-7NM | Recommended | Consider with Caution | |||
| M5 Seatpost Clamp Screw (Standard Clamp Design) | 6-7NM | Recommended | Not Recommended | |||
| Seatpost | M5 Saddle Rail Clamp Screws | 6-7NM | Recommended | Not Recommended | ||
| M6 Saddle Rail Clamp Screws | 7-9NM | Recommended | Not Recommended | |||
| M7 Saddle Rail Clamp Screws | 8-10NM | Recommended | Not Recommended | |||
| M6/M7 Single-Bolt Saddle Rail Clamp Screws | 10-12NM | Recommended | Not Recommended | |||
| M8 Single-Bolt Saddle Rail Clamp Screws (Brompton) | 12-14NM | Recommended | Not Recommended | |||
| Wheelset | M6 Quick-Release Wheelset Locking Screws | 6-8NM | Recommended | Not Recommended | ||
| M10 BMX Wheelset Locking Screws | Recommended | Not Recommended | ||||
| M14 BMX Wheelset Screws | Recommended | Not Recommended | ||||
| M9 Wheelset Locking Nuts | 12-14NM | Recommended | Not Recommended | |||
| M10 Wheelset Locking Nuts | 14-16NM | Recommended | Not Recommended | |||
| M12 Thru-Axle Bolt | 10-14NM | Recommended | Not Recommended | |||
| M14 Thru-Axle Bolt | 12-16NM | Recommended | Not Recommended | |||
| Brake System | Disc Rotor | Six-Bolt Disc Rotor Screws | 5-7NM | Consider with Caution | Recommended | Do not use anti-seize compounds or liquid thread lockers on screws related to the brake hydraulic system to avoid contaminating the hydraulic lines. |
| Center Lock Disc Rotor | 40NM | Recommended | Not Recommended | |||
| Brake Lever | M5 Brake Lever Fixing Screws | 5-7NM | Recommended | Not Recommended | ||
| M6 Brake Lever Fixing Screws | 6-8NM | Recommended | Not Recommended | |||
| Road Bike Shifter Fixing Nuts | 6-8NM | Recommended | Not Recommended | |||
| Brake Lever Bleed Port Screws | 2-3NM | Not Recommended | Recommended | |||
| Disc Brake Caliper | M6 Mountain Bike Caliper Fixing Screws | 9NM | Consider with Caution | Recommended | ||
| M5 Flat Mount Caliper Fixing Screws | 7NM | Consider with Caution | Not Recommended | |||
| M8 Hose Compression Fitting Screws | 6-7NM | Not Recommended | Not Recommended | |||
| M6 Caliper Body Screws | 12NM | Not Recommended | Not Recommended | |||
| M7 Caliper Body Screws | 14NM | Not Recommended | Not Recommended | |||
| M8 Caliper Body Screws | 14NM | Not Recommended | Not Recommended | |||
| M6 Caliper Banjo Screws | 12NM | Not Recommended | Not Recommended | |||
| Caliper Bleed Screws | 5-6NM | Not Recommended | Not Recommended | |||
| Brake Pad Pin | 3NM | Not Recommended | Not Recommended | |||
| C-Brake Caliper | Single Pivot Caliper Fixing Nut | 8NM | Not Recommended | Recommended | ||
| Dual Pivot Caliper Fixing Screws | 6-8NM | Consider with Caution | Consider with Caution | |||
| Brake Pad Fixing Screw Set | 7NM | Consider with Caution | Consider with Caution | |||
| Brake Pad Stop Screws | 3NM | Not Recommended | Not Recommended | |||
| Caliper Release Lever Screws | 3NM | Not Recommended | Not Recommended | |||
| Cable Anchor Screws | 5-7NM | Recommended | Not Recommended | |||
| Drivetrain System | Shifter | Shifter Clamp Bolt | 4-6NM | Recommended | Not Recommended | Do not use anti-seize compounds or liquid thread lockers on screws related to the brake hydraulic system to avoid contaminating the hydraulic lines. |
| Shifter Integration Bolt | 4-6NM | Recommended | Not Recommended | |||
| Shifter Top Cap Bolt (Shimano) | 4NM | Recommended | Not Recommended | |||
| Front Derailleur | Direct Mount Front Derailleur Fixing Bolt | 6-7NM | Recommended | Not Recommended | ||
| Front Derailleur Clamp Bolt | 5-7NM | Recommended | Not Recommended | |||
| Front Derailleur Cable Adjusting Bolt | 5-7NM | Recommended | Not Recommended | |||
| Rear Derailleur | Rear Derailleur Pivot | 10-12NM | Recommended | Not Recommended | ||
| UDH System Rear Derailleur Pivot | 25NM | Recommended | Not Recommended | |||
| M4 Pulley Bolt | 3NM | Consider with Caution | Consider with Caution | |||
| M5 Pulley Bolt | 4NM | Consider with Caution | Consider with Caution | |||
| M3 Rear Derailleur Lock Cover Bolt (Shimano) | 1.5NM | Not Recommended | Not Recommended | |||
| Rear Derailleur Cable Adjusting Bolt | 5-7NM | Recommended | Not Recommended | |||
| Crankset | Chainring Double-Sided Bolt | 6-8NM | Consider with Caution | Consider with Caution | ||
| Single Chainring Bolt | 8NM | Consider with Caution | Consider with Caution | |||
| M5 Crank Arm Bolt (SRAM 3-bolt) | 7NM | Consider with Caution | Consider with Caution | |||
| M4 Crank Arm Bolt (SRAM 8-bolt) | 4-5NM | Consider with Caution | Consider with Caution | |||
| M6 Crank Arm Fixing Bolt (Shimano) | 12-14NM | Consider with Caution | Consider with Caution | |||
| Crank Arm Cap (Shimano) | 2-4NM | Not Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (DUB) | 54NM | Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (Rotor) | 30-35NM | Recommended | Not Recommended | |||
| Crank Arm Fixing Bolt (EE) | 52NM | Recommended | Not Recommended | |||
| M8 Square Taper Crank Bolt | 30NM | Recommended | Not Recommended | |||
| Pedals | Pedal Axle | 25NM | Recommended | Not Recommended | ||
| Road Cleat Fixing Bolt (3-bolt) | 6-8NM | Not Recommended | Recommended | |||
| MTB Cleat Fixing Bolt (2-bolt) | 8NM | Not Recommended | Recommended | |||
